| 产品型号 | 产品型号 | PIN脚个数 | 工作温度 | 隔离高压等级 | 封装尺寸 | 工作电压 | CT | CMC | 通道数 | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

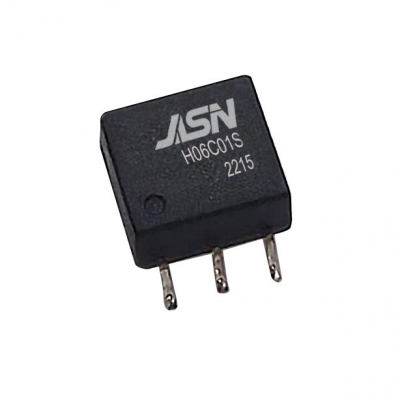

H06C01S | 6 | 0~+70°C | 2000Vac | H:5.25mm L:7.60mm W:9.45mm | / | ⬤ | ⬤ | 1 |  |
 |
H06C01SH | 6 | -40~+125°C | 4730Vdc | H:5.25mm L:7.60mm W:9.45mm | / | ⬤ | ⬤ | 1 | |
 |

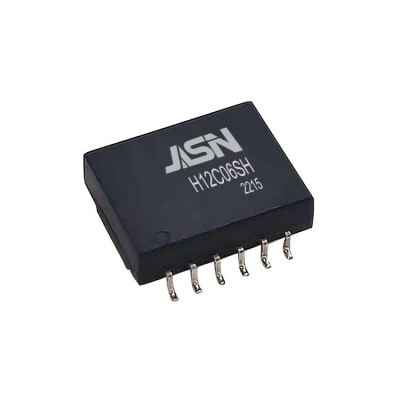

H12C06SH | 12 | -40~+125°C | 6220Vdc | H:5.0mm Max L:14.95mm W:27.85mm | 1000 Vdc | ⬤ | ⬤ | 2 | |
 |

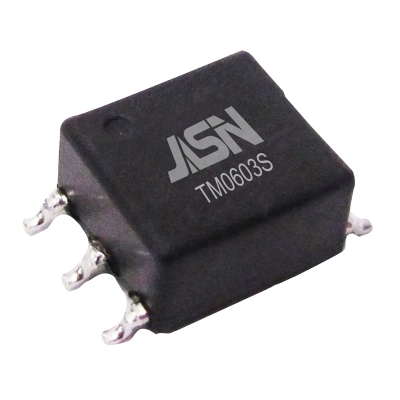

TM0603S | 6 | -40~+125°C | 3125Vac | H:4.19mm Max L:6.75mm Max W:10.2mm Max | 400Vac | ⬤ | - | 1 | |
 |

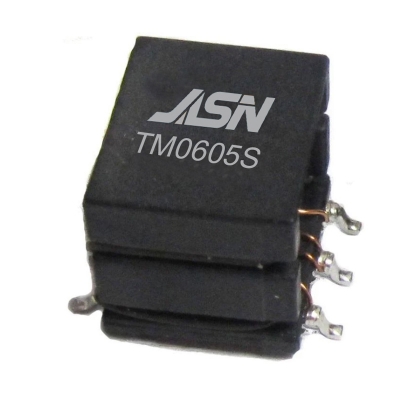

TM0605S | 6 | -40~+125°C | 6250Vrms | H:11.89mm Max L:12.32mm Max W:15.41mm Max | 1000 Vdc | ⬤ | - | 1 | |
 |

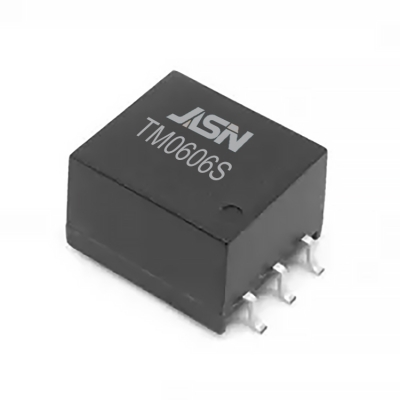

TM0606S | 6 | -40~+125°C | 4300 Vdc | H:6.85mm L:10.0mm W:12.7mm | 1000 Vdc | ⬤ | - | 1 | |
 |

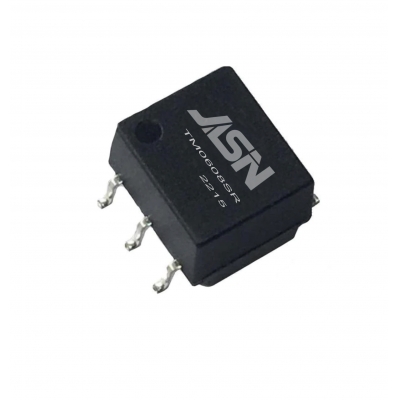

TM0608SR | 6 | -40~+125°C | 4300Vdc | H:5.72mm Max L:7.62mm W:8.89mm | 1000 Vdc | ⬤ | ⬤ | 1 | |
 |

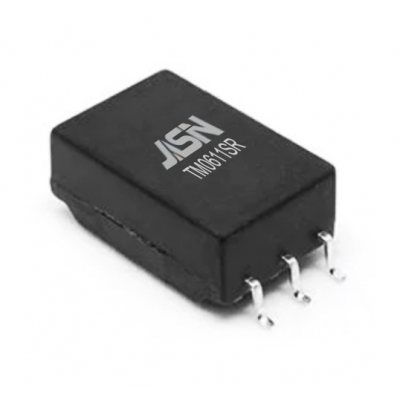

TM0611SR | 6 | -40~+125°C | 4300Vdc | H:5.75mm Max L:8.5mm W:16.84mm | 1000 Vdc | ⬤ | ⬤ | 1 | |
 |
TM0612SR | 6 | -40~+125°C | 8000Vdc | H:9.5mm Max L:31.5mm W:12.5mm | 1500 Vdc | ⬤ | ⬤ | 1 | |
 |

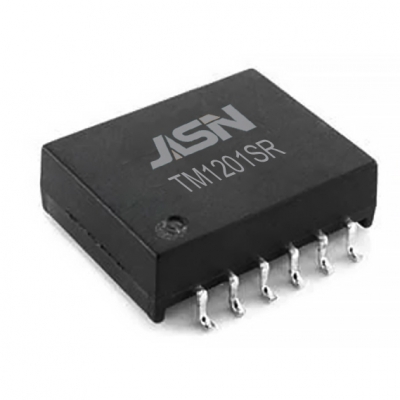

TM1201SR | 12 | -40~+125°C | 4300Vdc | H:5.0mm Max L:14.81mm W:14.73mm | 1600 Vdc | ⬤ | ⬤ | 2 | |
