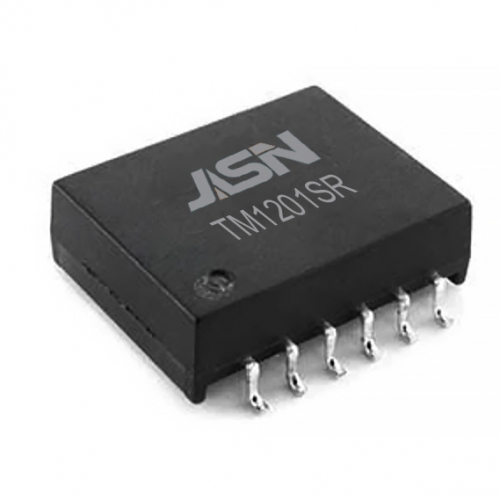

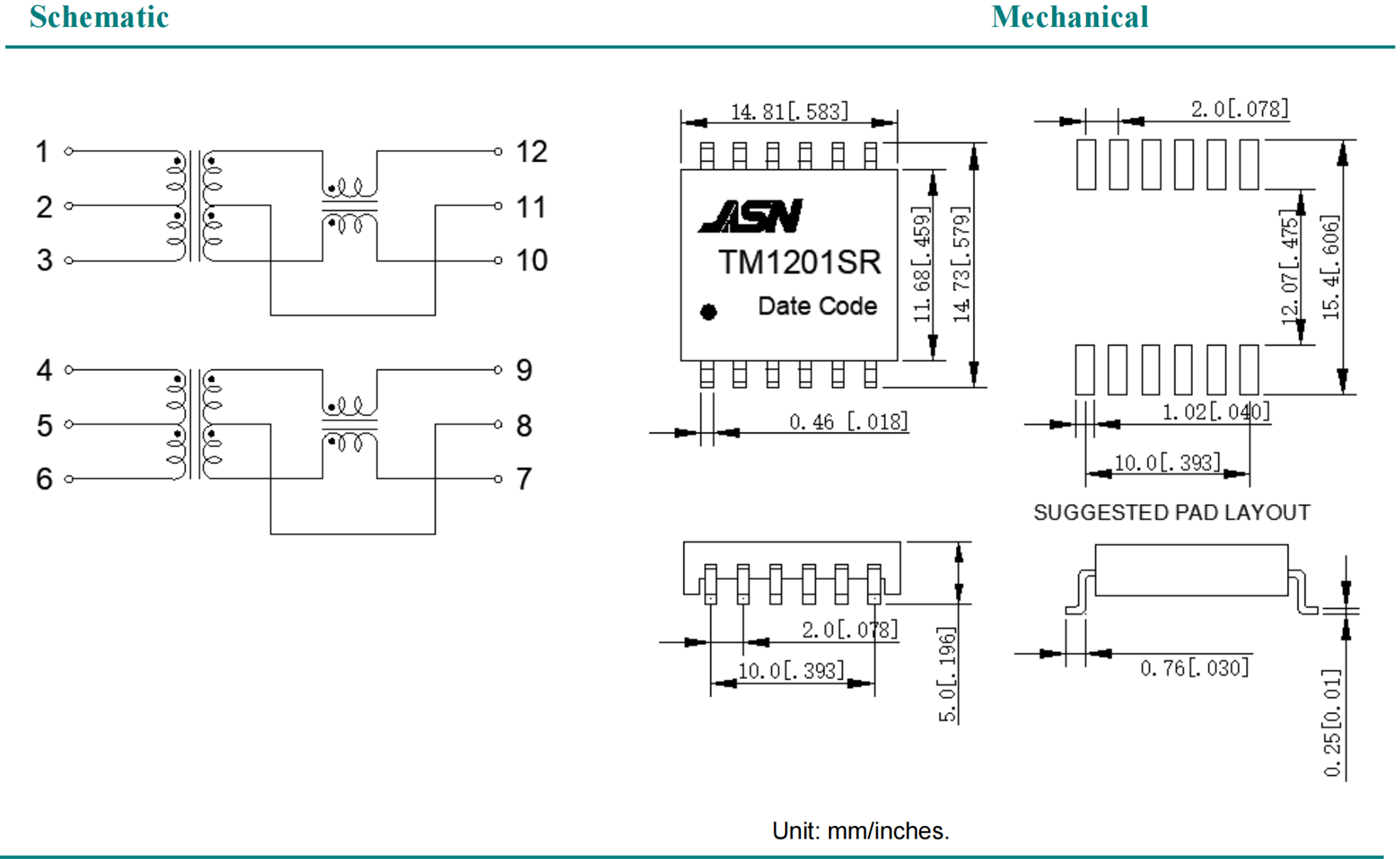

TM1201SR

Feature
Comply with RoHS requirements.
Comply with AEC-Q200.
Compliant to J-STD-020: level 1,no moisture sensitive.(Tp: 250Max.)
Operating temperature range: -40 to +125.
Storage temperature range: -50 to +125.
Product scrap disposal based on the local laws and regulations.
    Feature
    Comply with RoHS requirements.
    Comply with AEC-Q200.
    Compliant to J-STD-020: level 1,no moisture sensitive.(Tp: 250℃ Max.)
    Operating temperature range: -40 to +125.
    Storage temperature range: -50 to +125.
    Product scrap disposal based on the local laws and regulations.

    Electrical Specifications @ 25℃

    OCL:

    150 uH ~ 450uH. @100KHz/0.1V   (-40 C to+125C)

    Hi-Pot :

    4300VDC 1mA 60Sec

    Turns Ratio:

    1:1±2%

    Leakage Inductance::

    0.5uH   Max @100KHz/0.1V



    DCR:

    0.45 ohm Max. @Transformer side

    0.85 ohm Max. @CM choke side

    Insertion Loss:

    -0.25dB Max 4MHz

    Return Loss:

    -22dB Min @4MHz (Z out= 100Ω)

    CMRR:

    -35dB Min @1-200MHz





    Design Construction:

    Reinforced insulation per IEC62477-1,IEC60664- 1.IEC62368-1;

    Working voltage up to 1600VDC;Creepage distance>10mm,Clearance distance>14mm.    Pollution Degree  ,Material group CTI   ;Overvoltage Category ,up to 2km above sea level. UL pending.
