| 产品型号 | 产品型号 | 传输速率 | 端口数 | 封装类型 | PIN脚个数 | PIN脚间距 | PoE分级 | 工作温度 | 隔离高压等级 | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
H16C01S | 10/100Base-T | SINGLE | SMD | 16Pin | 1.27mm | PoE15W | 0℃to+70℃ | 1500V |  |
 |

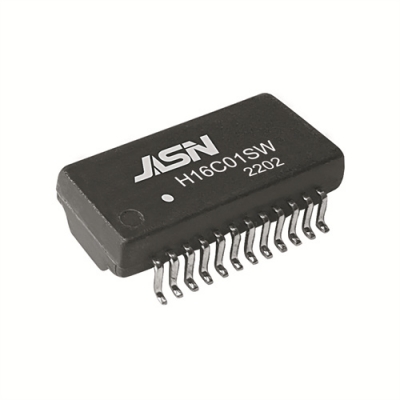

H16C01SW | 10/100Base-T | SINGLE | SMD | 16Pin | 1.27mm | PoE15W | -40℃to+85℃ | 1500V | |
 |
H16C81S | 10/100Base-T | SINGLE | SMD | 16Pin | 1.27mm | PoE15W | 0℃to+70℃ | 1500V | |
 |
H16C73SW | 10/100Base-T | SINGLE | SMD | 16Pin | 1.27mm | PoE15W | ‘-40℃to+85℃ | 1500V | |
 |

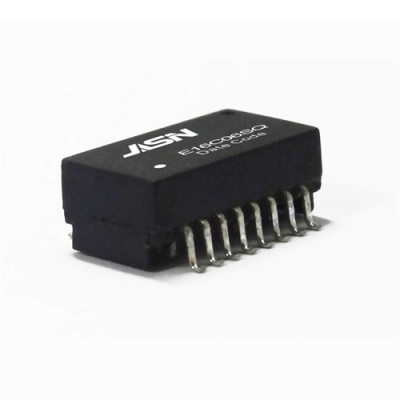

H16C06SQ | 10/100Base-T | SINGLE | SMD | 16Pin | 1.27mm | PoE30W | ‘-40℃to+85℃ | 1500V | |
 |
H16C76SH | 10/100Base-T | SINGLE | SMD | 16Pin | 1.27mm | PoE15W | ‘-40℃to+85℃ | 3000V | |
 |

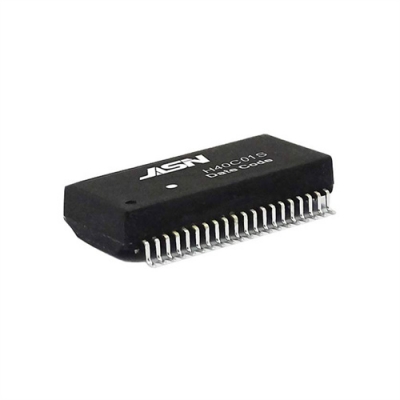

H40C01S | 10/100Base-T | QUAD | SMD | 40Pin | 1.27mm | PoE15W | 0℃to+70℃ | 1500V | |
 |

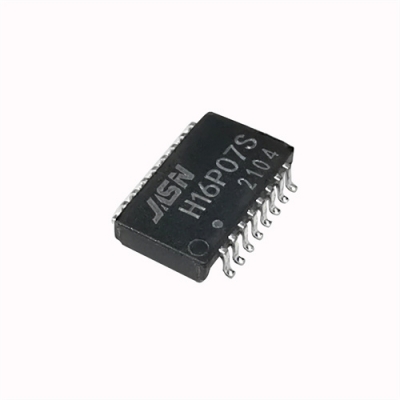

H16P07S | 10/100Base-T | SINGLE | PCMCIA | 16Pin | 1.27mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |
H16P09S | 10/100Base-T | SINGLE | PCMCIA | 16Pin | 1.27mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |

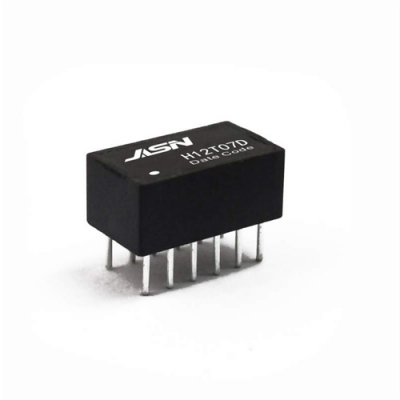

H12T07D | 10/100Base-T | SINGLE | DIP | 12Pin | 2.00mm | PoE15W | 0℃to+70℃ | 1500V | |
 |

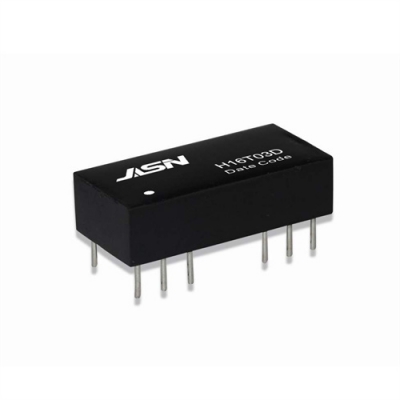

H16T03D | 10/100Base-T | SINGLE | DIP | 16Pin | 2.54mm | PoE15W | 0℃to+70℃ | 1500V | |
 |

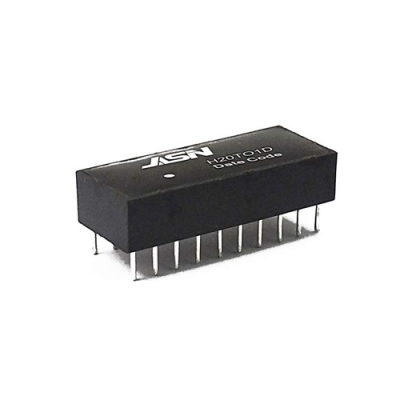

H20T01D | 10/100Base-T | DUAL | DIP | 20Pin | 2.54mm | PoE15W | 0℃to+70℃ | 1500V | |
