| 产品型号 | 产品型号 | 传输速率 | 端口数 | 封装类型 | PIN脚个数 | PIN脚间距 | PoE分级 | 工作温度 | 隔离高压等级 | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
G48C01S | 1000Base-T | DUAL | SMD | 48Pin | 1.02mm | PoE15W | 0℃to+70℃ | 1500V |  |
 |
G48T01D | 1000Base-T | DUAL | DIP | 48Pin | 2.00mm | PoE15W | 0℃to+70℃ | 1500V | |
 |
G72T07DB | 1000Base-T | QUAD | DIP | 72Pin | 1.78mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |

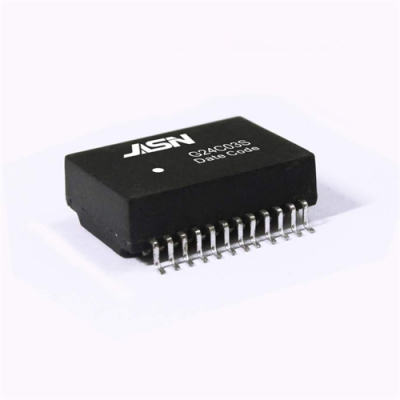

G24C03S | 1000Base-T | SINGLE | SMD | 24Pin | 1.27mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |
G24C02S | 1000Base-T | SINGLE | SMD | 24Pin | 1.27mm | PoE15W | 0℃to+70℃ | 1500V | |
 |

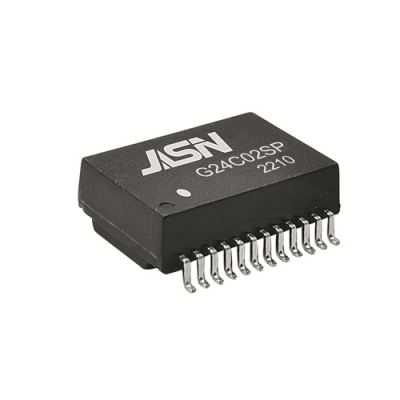

G24C02SP | 1000Base-T | SINGLE | SMD | 24Pin | 1.27mm | PoE15W | 0℃to+70℃ | 1500V | |
 |
G24C02SWU | 1000Base-T | SINGLE | SMD | 24Pin | 1.27mm | 4PPoE60W | ‘-40℃to+85℃ | 1500V | |
 |
G24C28SQ | 1000Base-T | SINGLE | SMD | 24Pin | 1.27mm | 4PPoE60W | ‘-40℃to+85℃ | 1500V | |
 |
G24C02SH | 1000Base-T | SINGLE | SMD | 24Pin | 1.27mm | PoE15W | 0℃to+70℃ | 5000V | |
 |
G48C04S | 1000Base-T | DUAL | SMD | 48Pin | 1.02mm | Non-PoE | 0℃to+70℃ | 1500V | |
 |

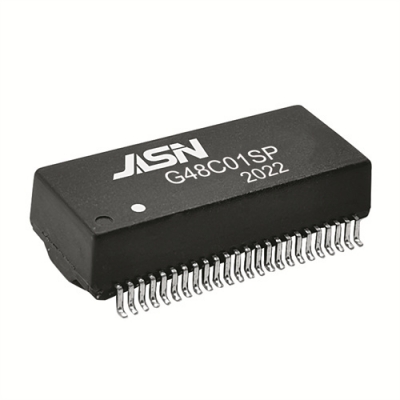

G48C01SP | 1000Base-T | DUAL | SMD | 48Pin | 1.02mm | PoE15W | 0℃to+70℃ | 1500V | |
 |
G48C07SP | 1000Base-T | DUAL | SMD | 48Pin | 1.02mm | 4PPoE30W | 0℃to+70℃ | 1500V | |
