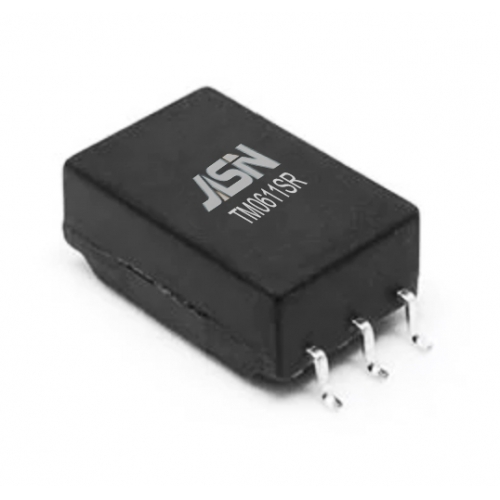

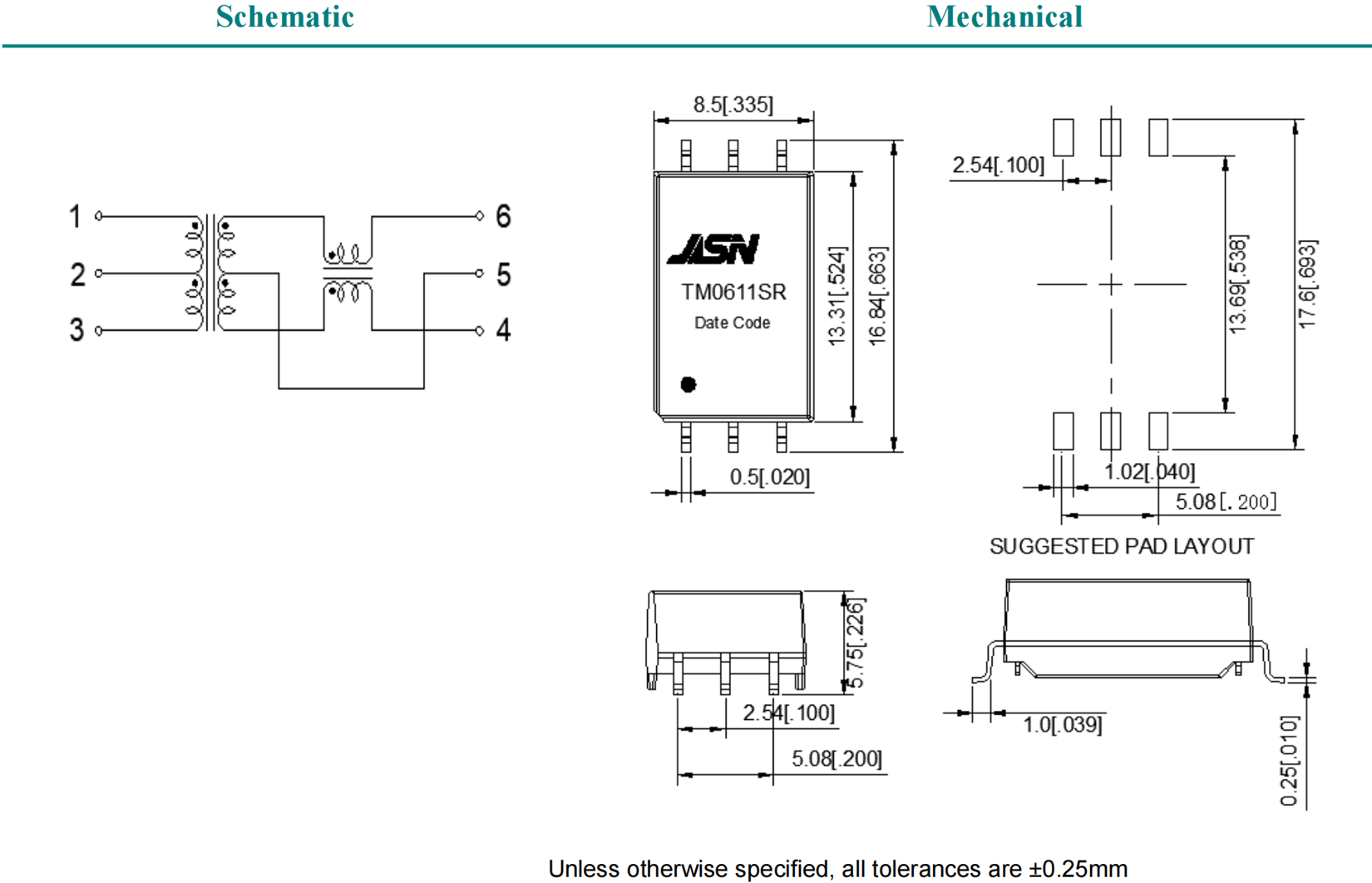

TM0611SR

Feature
Comply with RoHS requirements.
Comply with AEC-Q200.
Creepage distance: >10mm.
Compliant to J-STD-020: level 1,no moisture sensitive.(Tp: 250Max.)
Operating temperature range: -40 to +125.
Storage temperature range: -50 to +125.
Product scrap disposal based on the local laws and regulations.
    Feature
    Comply with RoHS requirements.
    Comply with AEC-Q200.
    Creepage distance: >10mm.
    Compliant to J-STD-020: level 1,no moisture sensitive.(Tp: 250℃ Max.)
    Operating temperature range: -40 to +125.
    Storage temperature range: -50 to +125.
    Product scrap disposal based on the local laws and regulations.
    Electrical Specifications @ 25

    OCL:

    150 uH ~ 450uH. @100KHz/0.1V   (-40 C to+125C)

    Hi-Pot :

    4300VDC 1mA 60Sec

    Turns Ratio:

    1:1±2%

    LK:

    0.5uH   Max @100KHz/0.1V



    DCR:

    0.45 ohm Max. @Transformer side

    0.85 ohm Max. @CM choke side

    Insertion Loss:

    -0.35dB Max 4MHz

    Return Loss:

    -20dB Min @4MHz (Z out= 100Q)



    CMRR:

    -35dB Min @1- 10MHz

    -20dB Min @10-100MHz

    Design Construction:

    Functional insulation ; Working voltage 1000VDC;
