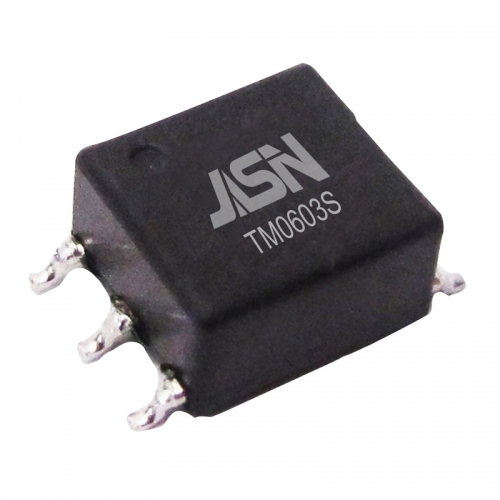

Feature
●Current Rating:350mAac
●Voltage-Time:11uS
● Coplanarity:0.1[.004]Max
●Complies with the following requirements as defined by
●IEC60950-1,EN60950-1,UL60950-1/CSA60950-1 and AS/NZS60950-1
●-Functional insulation for a primary circuit at a working voltage of 400Vrms
●Comply with RoHS requirements.
●Operating temperature range:-40℃ to +125℃.
●Qualified to AEC-Q200
●Electrical Specifications @ 25℃
Electrical Specifications @ 25℃
|
PAPAMETER |
TEST CONDITIONS |
VALUE |
|
|
D.C.RESISTANCE |
1-3 |
@20℃ |
0.35 ohms max |
|
D.C.RESISTANCE |
6-4 |
@20℃ |
0.57 ohms max |
|
INDUCTANCE |
1-3 |
10KHZ 100 mVac. LS |
475 uH min |
|
INTERWINDING CAPACITANCE 1-6 |
100KHZ 10 mVac. CS |
17.5pF typ |
|
|
DIELECTRIC |
1-6 |
3125Vac 1 seconds |
2500Vac ，1 minute |
|
TURNS RATIO |
6-4:1-3 |
2:1 ±2% |
|
