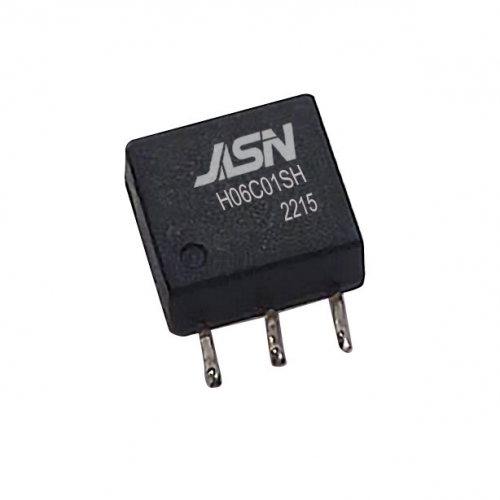

Feature
●Comply with RoHS requirements.
●Operating temperature range: -40℃ to +125℃.
●Storage temperature range: -40℃ to +125℃.
Electrical Specifications @ 25℃
|
OCL: |
Pri: 150uH Min. @100KHz/0.1V |
|
Hi-Pot : |
4730VDC 0.5mA 2Sec |
|
Turns Ratio: |
1CT:1CT±2% |
|
LK: |
Pri: 0.5uH Max @100KHz/0.1V |
|
DCR: |
Pri : 0.55ohm Max |
|
Sec : 0.85ohm Max |
|
|
CWW: |
28pF Max |
|
Insertion Loss: |
4MHz: -0.25dB Max |
|
Return Loss: |
4MHz: -20dB Min |
|
CMRR: |
1-10MHz: -35dB Min |
|
10-100MHz: -20dB Min |
