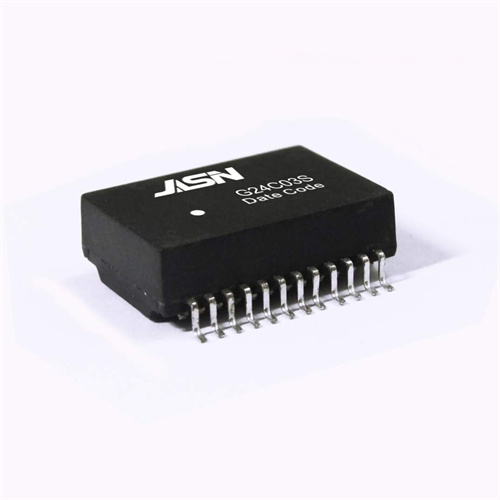

Feature
●Compliant with IEEE 802.3ab standard.
●Comply with RoHS requirements.
●Operating temperature: 0℃ to +70℃
Electrical Specifications @ 25℃
|
Inductance, Ls(Primary) |
350uH Min. @100KHz/0.1V with 8mA DC Bias |
|||
|
Turn Ratio(Primary):(Secondary): |
1CT:1CT±2% |
|||
|
Polarity(Primary):Secondary) |
Per Schematic |
|||
|
Insertion Loss: |
1-100MHz: -1.0dB Max |
|||
|
Return Loss： |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
|
-18dB Min |
-14.5dB Min |
-13.1dB Min |
-12dB Min |
|
|
Cross Talk(between channels) |
30MHz |
60MHz |
100MHz |
|
|
-45dB Min |
-40dB Min |
-35dB Min |
||
|
CMRR; |
-35dB Min@0.1-100MHz |
|||
|
Hi-Pot (Primary):(Secondary) |
1500Vrms 60s |
|||
