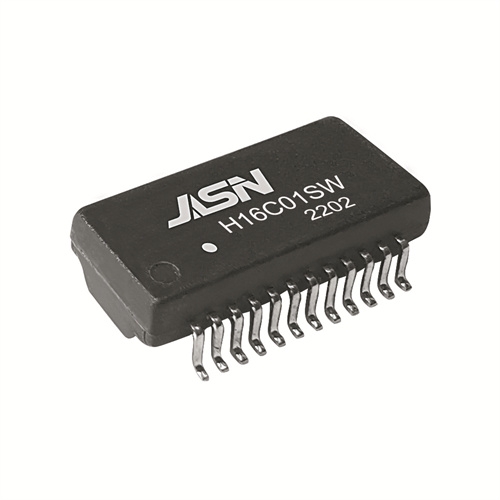

H16C01SW

Feature


Compliant with IEEE 802.3u standard.
Comply with RoHS requirements.
Suitable for End-span PoE applications with 350mA current capability
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +105℃.

    Feature


    Compliant with IEEE 802.3u standard.
    Comply with RoHS requirements.
    Suitable for End-span PoE applications with 350mA current capability
    Operating temperature range: -40℃ to +85℃.
    Storage temperature range: -40℃ to +105℃.


    Electrical Specifications @ 25℃

    OCL:

    350uH Min. @100KHz/0.1V with 8mA DC Bias

    Hi-POT :

    1500VAC 1mA 2S

    Turn Ratio:

    1:1±3%

    LK:

    0.5uH Max @100KHz/0.2V

    Cw/w

    35PF Max @100KHz/0.2V

    D.C.R:

    1.2 ohm Max

    Insertion Loss:

    1-100MHz: -1.0dB Max

    Cross Talk :

    1-100MHz: -30dB Min



    Return Loss:

    1-30MHz

    40MHz

    50MHz

    60-80MHz

    80-100MHz

    -18dB Min

    -14.4dB Min

    -13.1dB Min

    -12dB Min

    -10dB Min
