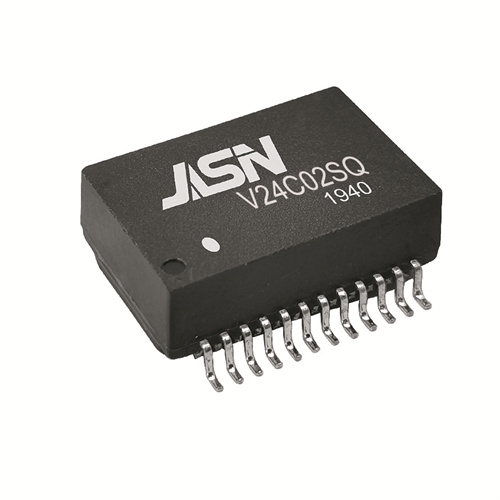

V24C02SQ

Feature


●Comply with IEEE802.3bz&802.3bt.
●Comply with RoHS requirements.
●Suitable for End-span PoE applications with 720mA current capability
●Operating temperature range: -40℃ to +85℃.
●Storage temperature range: -40℃ to +125℃.

    Feature


    ●Comply with IEEE802.3bz&802.3bt.
    ●Comply with RoHS requirements.
    ●Suitable for End-span PoE applications with 720mA current capability
    ●Operating temperature range: -40℃ to +85℃.
    ●Storage temperature range: -40℃ to +125℃.


    Electrical Specifications @ 25℃

    OCL:

    120uH Min. @100KHz/0.1V with 12.5mA DC Bias

    Hi-Pot :

    1500Vrms

    Turns Ratio:

    1CT:1CT±3%

    D.C.R:

    1.0 ohm Max



    Insertion Loss:

    -1.0dB Max@1-100MHz

    -1.5dB Max@100-125MHz



    Return Loss:

    -16dB Min @1-40MHz

    -16+10log(f/40)dB Min@40-250MHz

    Cross Talk :

    -30dB Min@1-125MHz

    CMRR:

    -30dB Min@1-125MHz
