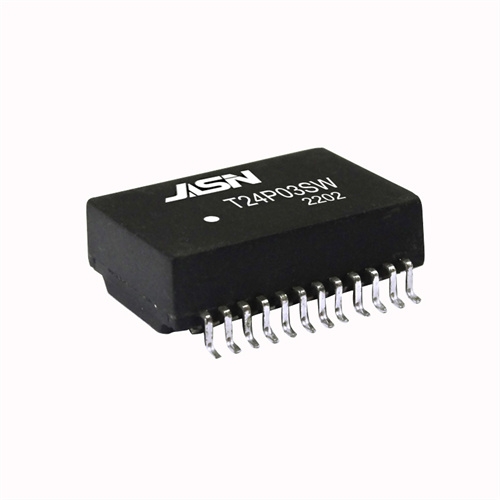

T24P03SW

Feature


●Comply with IEEE802.3an
●Comply with RoHS requirements.
●Operating temperature range: -40℃ to +85℃.
●Storage temperature range: -40℃ to +105℃.

    Feature


    ●Comply with IEEE802.3an
    ●Comply with RoHS requirements.
    ●Operating temperature range: -40℃ to +85℃.
    ●Storage temperature range: -40℃ to +105℃.


    Electrical Specifications @ 25℃

    OCL:

    150uH Min. @100KHz/0.1V

    Hi-POT :

    1500Vrms

    Turn Ratio:

    1:1±3%

    LK:

    0.5uH Max @100KHz/0.2V

    Cw/w

    18PF Max @100KHz/0.2V

    D.C.R:

    0.6 ohm Max



    Insertion Loss:

    1-200MHz

    200-400MHz

    400-500MHz

    -1dB Max

    -2dB Max

    -3dB Max

    Cross Talk :

    1-500MHz: -30dB Min



    Return Loss:

    1-200MHz

    200-300MHz

    300-400MHz

    400-500MHz

    -16dB Min

    -14dB Min

    -11dB Min

    -9dB Min
