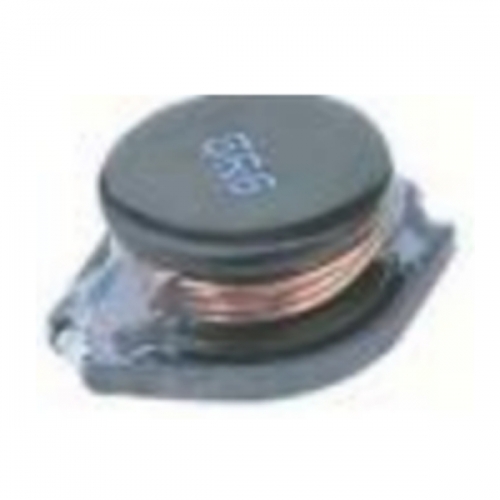

Power Inductors LFDO3316&LFDO3340&LFDO5022Series
LFDO3316&LFDO3340&LFDO5022Series
■ Power Inductors
■ Inductance Range:1.0 to 1000uH
■ Operating temperature -40℃ to +125℃
■ Inductance drop 25% at Isat
■ Rohs compliant
Product Identification
| LFDO |
3316 |
- |
100 |
M |
| ① |
② |
③ |
④ |
⑤ |
① Product Symbol.
② Product dimensions
③ Inductance Value：(2R2=2.2uH,100=10uH,101=100uH,102=1000uH)
④ Induc tance Tolerance：(K=±10%,M=±20%,N=±30%)
Features
■ Low profile and shielded very effective in space-conscious applications.
■ Low resistance and high energy storage.
■ Packed in embossed carrier tape and can be used by automatic mounting machine.
Applications
■ Excellent as DC-DC converter used in notebooks computers, LCD TV, DVD,Game Machine.
Step-up or step-down converters, flash memory.

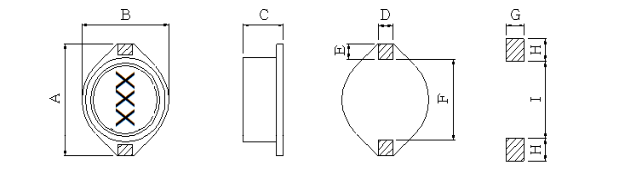

External Dimensions (Unit:m/m)
| Type |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| LFDO3316 | 12.95Max | 9.80Max | 5.21Max | 2.54 | 2.54 | 7.62 | 2.79 | 2.92 | 7.37 |
| LFDO3340 | 12.95Max | 9.80Max | 11.43Max | 2.54 | 2.54 | 7.62 | 2.79 | 2.92 | 7.37 |
| LFDO5022 | 18.54Max | 15.24Max | 7.11Max | 2.54 | 2.54 | 12.65 | 2.79 | 2.92 | 7.3 |
Electrical Specifications@25℃
LFDO3340Series
| Part |
Inductance |
Test |
DC |
Rated |
| LFDO3340-100N |
10 |
100 |
0 040 |
8.00 |
| LFDO3340-150N |
15 |
100 |
0.050 |
7.00 |
| LFDO3340-220N |
22 |
100 |
0.060 |
5.50 |
| LFDO3340-330N |
33 |
100 |
0.080 |
4.00 |
| LFDO3340-470N |
47 |
100 |
0.110 |
3.80 |
| LFDO3340-680M |
68 |
100 |
0 170 |
3.00 |
| LFDO3340-101M |
100 |
100 |
0.220 |
2.50 |
| LFDO3340-151M |
150 |
100 |
0.340 |
2.00 |
| LFDO3340-221M |
220 |
100 |
0.440 |
1.60 |
| LFDO3340-331M |
330 |
100 |
0.700 |
1.20 |
| LFDO3340 471M |
470 |
100 |
0 950 |
1.00 |
| LFDO3340-681M |
680 |
100 |
1.200 |
1.00 |
| LFDO3340-102M |
1000 |
100 |
2.000 |
0.80 |
