LFRH105

■ Shield Power Inductors
■ Inductance Range:1.0 to 1000uH
■ Operating temperature -40℃ to +125℃
■ Inductance drop 30% at Isat
■ Rohs compliant
    Shielded Power Inductors LFRH103&LFRH104&LFRH105Series

    LFRH103&LFRH104&LFRH105Series
    ■ Shield Power Inductors
    ■ Inductance Range:1.0 to 1000uH
    ■ Operating temperature -40℃ to +125℃
    ■ Inductance drop 30% at Isat
    ■ Rohs compliant

    Product Identification
    LFRH  103 - 100 M
    ① Product Symbol.
    ② Product dimensions
    ③ Inductance Value:(2R2=2.2uH,100=10uH,101=100uH,102=1000uH)
    ④ Induc tance Tolerance:(K=±10%,M=±20%,N=±30%)

    Features

    ■ Magnetic shielded surface mount inductor with high current rating.
    ■ High inductance/High power inductor.
    ■ Packed in embossed carrier tape and can be used by automatic mounting machine.

    Applications

    ■ Ideal use in variety of DC-DC converter inductor applicarions.
       Ideally used in Notebook PC,Game Machine, HDD,DVD,LCD TV.

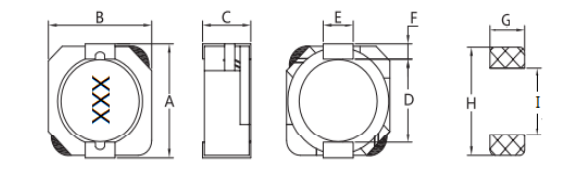

    External Dimensions (Unit:m/m)

    Type A B C D E F G H I
    LFRH103 10.2±0.30 10.0±0.30 3.10Max 7.8 3 1.2 3.2 10.5 7.3
    LFRH104 10.2±0.30 10.0±0.30 4.00Max 7.8 3 1.2 3.2 10.5 7.3
    LFRH105 10.2±0.30 10.0±0.30 5.10Max 7.8 3 1.2 3.2 10.5 7.3

    Electrical Specifications@25℃


    LFRH105Series

    Part Number Inductance (µH) Test Frequency (KHz) DC Resistance (Ω)Max Rated DC Current (A)Max
    LFRH105-1R5N 1.5 100 0. 011 10.50
    LFRH105-2R2N 2.2 100 0.013 9.25
    LFRH105-3R3N 3.3 100 0.017 7.80
    LFRH105-4R7N 4.7 100 0.019 6.40
    LFRH105-6R8N 6.8 100 0.025 5.40
    LFRH105-100M 10 100 0 046 4 50
    LFRH105-150M 15 100 0.049 3.60
    LFRH105-180M 18 100 0.055 3.20
    LFRH105-220M 22 100 0.061 2.95
    LFRH105-270M 27 100 0.072 2.60
    LFRH105 330M 33 100 0 084 2.40
    LFRH105-390M 39 100 0.105 2.20
    LFRH105-470M 47 100 0.130 2.00
    LFRH105-560M 56 100 0.149 1.90
    LFRH105-680M 58 100 0.201 1.65
    LFRH105-820M 82 100 0.227 1.50
    LFRH105-101M 100 100 0.253 1.35
    LFRH105-151M 150 100 0.370 1.12
    LFRH105-181M 180 100 0.419 1.04
    LFRH105-221M 220 100 0.500 0.94
    LFRH105-271M 270 100 0.590 0.86
    LFRH105-331M 330 100 0.700 0.80
    LFRH105-391M 390 100 0.800 0.75
    LFRH105-471M 470 100 1.290 0.60
    LFRH105-561M 560 100 1.430 0.54
    LFRH105-681M 680 100 1.600 0.52
    LFRH105-821M 820 100 1.770 0.50
    LFRH105-102M 1000 100 1.990 0.48
     NOTE: Tolerance value: K = ±10%, L = ±15%, M = ±20%,N=±30%
