LCMF0605&0806 Series
■ Common Mode Filters
■ Thin film deposition process
■ Impedance Range:0 to 90Ω
■ Operating temperature -25℃ to +85℃
■ Rohs compliant

LCMF	0605	S	350	2P
①	②	③	④	⑤

① Product Symbol.
② Product dimensions
③ Product internal code
④ Impedance(at 100MHz): 900 = 90Ω，350 = 35Ω，120 = 12Ω，070 = 7Ω
⑤ Line Code: 2P= 2 lines

Features
■ Effective for suppressing common mode noise at high frequency
■ Excellent solderability characteristics
■ Small size & low profile
■ SMD component based on Thin film deposition process

Applications
■ Common mode noise suppression of high speed differential signal lines,such as MIPI,MHL, HDMI in mobile phone, tablet PC, TV etc.

External Dimensions (Unit:m/m)

Type	A	B	C	D	E	F
LCMF0605	0.65±0.05	0.55±0.05	0.3±0.05	0.2±0.05	0.15±0.1	0.3±0.1
LCMF0806	0.85±0.05	0.65±0.05	0.4±0.05	0.27±0.05	0.2±0.1	0.5±0.1

Equivalent Circuit
Electrical Specifications
LCMF0605 Series

Part Number	Common Mode Impedance at 100 MHz(Ω)	Max.DC Resistance Rdc (Ω)	Rated Voltage (V)	Rated Current (mA)	Insulation Resistance I.R.(MΩ)
LCMF0605S1202P	12±25%	2.5	5	100	10
LCMF0605S3502P	35±25%	2.5	5	100	10
LCMF0605S4702P	47±25%	3.2	5	100	10
LCMF0605S9002P	90±25%	4.0	5	100	10

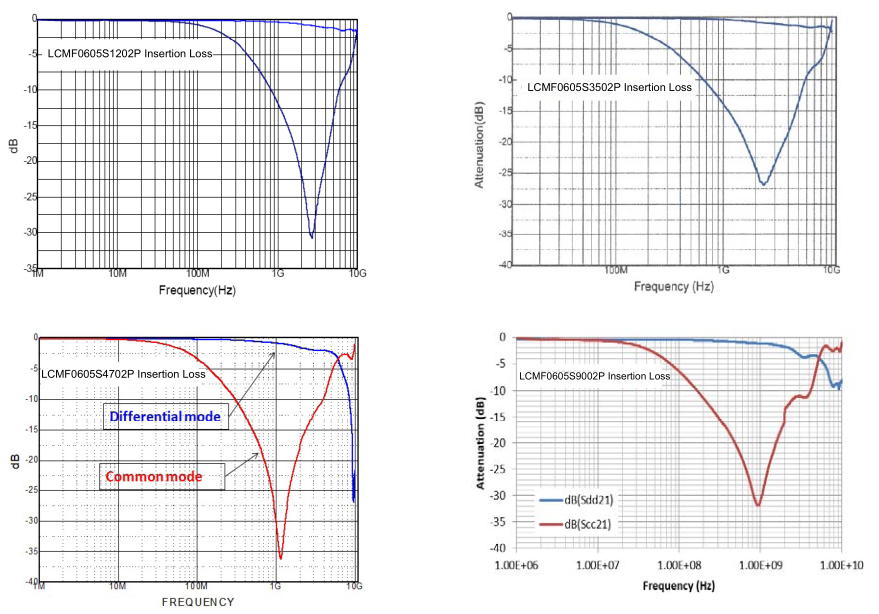

Electrical Characteristics
