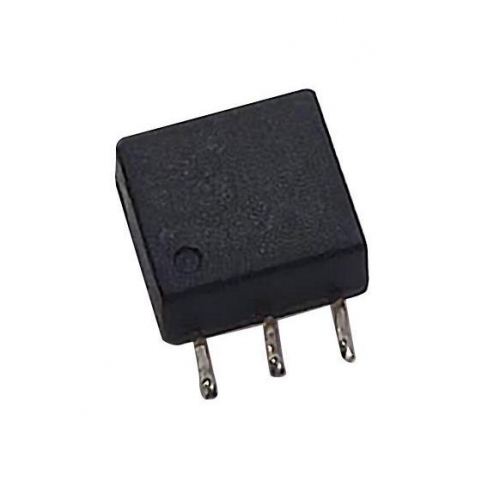

H06C05SH

Feature


●Comply with RoHS requirements.
●Operating temperature range: -40℃ to +125℃.
●Storage temperature range: -40℃ to +125℃.
●Creepage distance: >5mm.
●Working voltage: 1000V DC.

    Feature


    ●Comply with RoHS requirements.
    ●Operating temperature range: -40℃ to +125℃.
    ●Storage temperature range: -40℃ to +125℃.
    ●Creepage distance: >5mm.
    ●Working voltage: 1000V DC.

    Electrical Specifications @ 25℃

    OCL:

    150uH Min. @100KHz/0.1V

    Hi-Pot :

    4300VDC 0.5mA 60Sec

    Turns Ratio:

    1CT:1CT±2%

    LK:

    0.5uH Max @100KHz/0.1V



    DCR:

    Pri : 0.55ohm Max

    Sec : 0.85ohm Max

    Insertion Loss:

    4MHZ : -0.25dB Max

    Return Loss:

    4MHZ : -20dB Min



    CMRR:

    1-10MHZ : -35dB Typ

    10-1000MHZ : -20dB Typ
