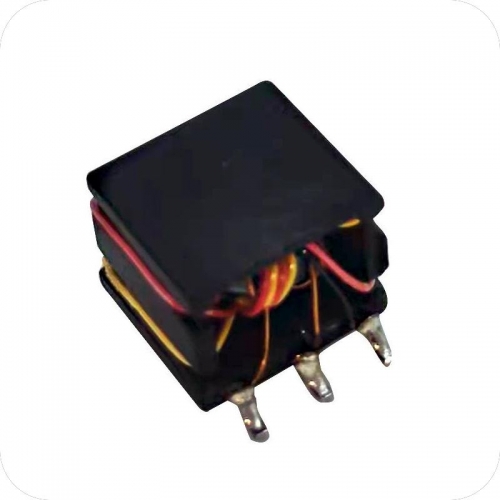

CM0623S

Feature


●Comply with RoHS requirements.
●Operating temperature range: -40℃ to +125℃.
●Storage temperature range: -40℃ to +125℃.
●Current Rating: 350mA AC,
●Voltage-TIME: 11VuS.

    Feature


    ●Comply with RoHS requirements.
    ●Operating temperature range: -40℃ to +125℃.
    ●Storage temperature range: -40℃ to +125℃.
    ●Current Rating: 350mA AC,
    ●Voltage-TIME: 11VuS.

    Electrical Specifications @ 25℃

    OCL:

    (1-3)= 340uH Min. @100KHz/0.1V

    Hi-Pot :

    6250VAC 1mA 1Sec

    Turns Ratio:

    (6-4): (1-3)2CT:1 CT±2%



    DCR:

    (1-3): 0.436ohm Max

    (6-4) : 0.581hm Max

    INTERWINDING

    CAPACITANCE:



    (1-6): 5.5pF Typ   100KHz/10mV
