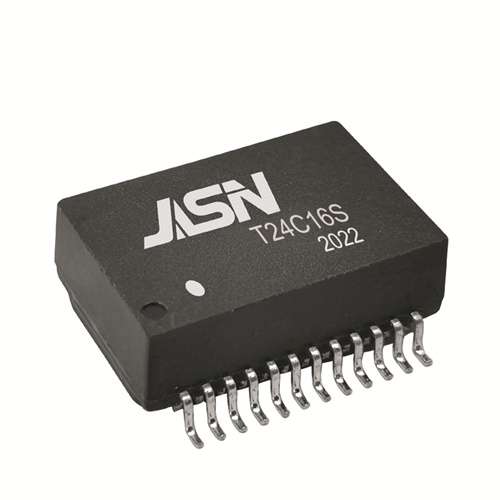

T24C16S

Feature


●Comply with RoHS requirements.
●Suitable for POE applications with 600mA current.
●Operating temperature range: 0℃ to +70℃.
●Storage temperature range: -25℃ to +105℃.

    Feature


    ●Comply with RoHS requirements.
    ●Suitable for POE applications with 600mA current.
    ●Operating temperature range: 0℃ to +70℃.
    ●Storage temperature range: -25℃ to +105℃.

    Electrical Specifications @ 25℃

    OCL:

    120uH Min. @100KHz/0.1V with 8mA Bias

    Hi-Pot :

    1500Vrms 1mA 2S

    Turns Ratio:

    1CT:1CT±3%

    D.C.R:

    1.0 ohm Max



    Insertion Loss:

    -1.5dB Max@1-250MHz

    -3.0dB Max@250-500MHz



    Return Loss

    -16dB Min@1-40MHz

    -16+10log(f/40)dB Min@40-500MHz



    Crosstalk

    -35dB Min@1-100MHz

    -30dB Min@100-500MHz



    CMRR

    -30dB Min@1-250MHz

    -20dB Min@250-500MHz
