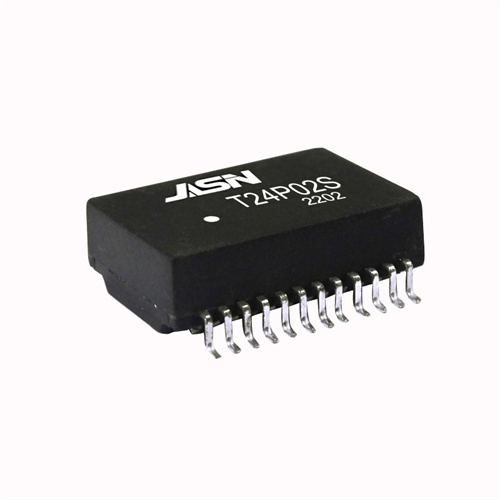

●10G BASE-T Ethernet Magnetics
●Comply with RoHS requirements.
●Operating temperature range: 0℃ to +70℃.
●Storage temperature range: -20℃to +125℃.
Electrical Specifications @ 25℃
|
OCL: |
120uH Min. @100KHz/0.1V |
|||
|
Hi-POT : |
1500Vrms |
|||
|
Turn Ratio: |
1:1±3% |
|||
|
LK: |
0.5uH Max @100KHz/0.2V |
|||
|
Cw/w |
18PF Max @100KHz/0.2V |
|||
|
D.C.R: |
0.6 ohm Max |
|||
|
Insertion Loss: |
1-200MHz |
200-400MHz |
400-500MHz |
|
|
-1dB Max |
-2dB Max |
-3dB Max |
||
|
Cross Talk : |
1-500MHz: -30dB Min |
|||
|
Return Loss: |
1-200MHz |
200-300MHz |
300-400MHz |
400-500MHz |
|
-16dB Min |
-14dB Min |
-11dB Min |
-9dB Min |
|
