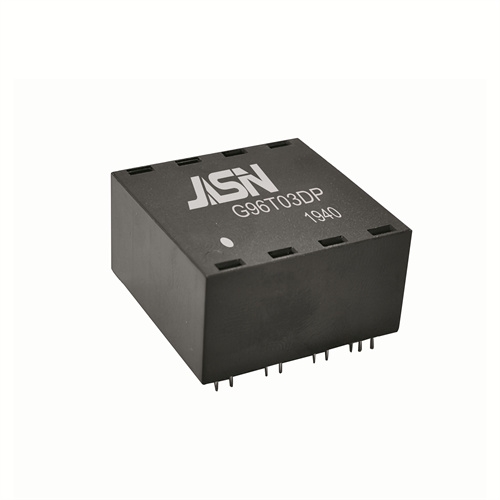

Feature
●Compliant with IEEE802.3bt standard.
●Comply with RoHS requirements.
●Designed to support applications up tp 1100mA Per centre tap.
●Operating temperature range: -40℃ to +85℃.
●Storage temperature range: -40℃ to +125℃.
Electrical Specifications @ 25℃
|
OCL: |
350uH Min. @100KHz/0.1V with 18mA DC Bias |
|
|
Hi-POT : |
1500Vrms |
|
|
Turn Ratio: |
1:1±3% |
|
|
LK: |
0.5uH Max @100KHz/0.2V |
|
|
Cw/w |
35pF Max @100KHz/0.2V |
|
|
D.C.R: |
1.4 ohm Max |
|
|
Insertion Loss: |
1-100MHz: -1.4dB Max |
|
|
Cross Talk : |
1-100MHz: -30dB Min |
|
|
CMRR: |
1-100MHz: -30dB Min |
|
|
Return Loss: |
1-40MHz |
40-100MHZ |
|
-16dB Min |
-10+20log(f/80)dB Min |
|
