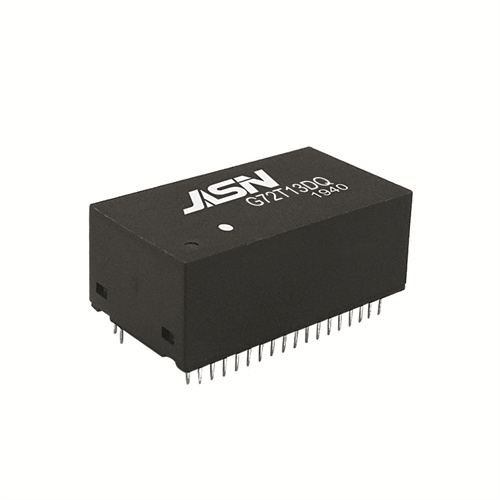

G72T13DQ

Feature


●Compliant with IEEE 802.3ab standard.
●Comply with RoHS requirements.
●Operating temperature range: -40℃ to +85℃.
●Storage temperature range: -40℃ to +125℃.

    Feature


    ●Compliant with IEEE 802.3ab standard.
    ●Comply with RoHS requirements.
    ●Operating temperature range: -40℃ to +85℃.
    ●Storage temperature range: -40℃ to +125℃.


    Electrical Specifications @ 25℃

    OCL:

    350uHMin.@100KHz/0.1Vwith8mADCBias

    Hi-POT:

    1500Vrms

    TurnRatio:

    1:1±3%

    LK:

    0.5uHMax@100KHz/0.2V

    Cw/w

    120pFMax@100KHz/0.2V

    D.C.R:

    1.4ohm Max

    InsertionLoss:

    1-100MHz:-1.0dBMax

    CrossTalk :

    1-100MHz:-30dBMin



    ReturnLoss:

    1-30MHz

    40MHz

    50MHz

    60-80MHZ

    80-100MHZ

    -18dBMin

    -14.4dBMin

    -13.1dBMin

    -12dBMin

    -10dBMin
