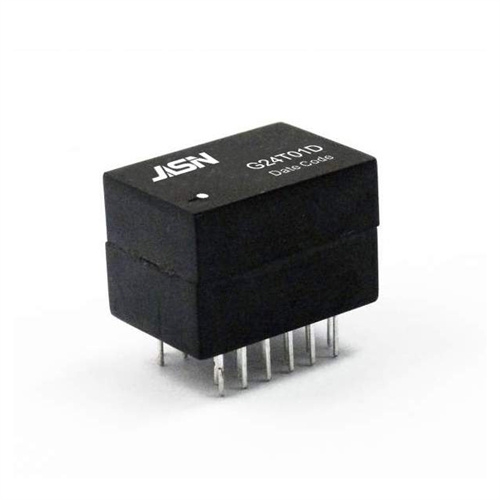

G24T01D

Feature


●Compliant with IEEE 802.3ab standard.
●Comply with RoHS requirements.
●Suitable for End-span PoE applications with 350mA current capability
●Operating temperature range: 0℃ to +70℃.
●Storage temperature range: -25℃ to +105℃.

    Feature


    ●Compliant with IEEE 802.3ab standard.
    ●Comply with RoHS requirements.
    ●Suitable for End-span PoE applications with 350mA current capability
    ●Operating temperature range: 0℃ to +70℃.
    ●Storage temperature range: -25℃ to +105℃.


    Electrical Specifications @ 25℃

    OCL:

    350uH Min. @100KHz/0.1V with 8mA DC Bias

    Hi-POT :

    1500Vrms

    Turn Ratio:

    1:1±3%

    LK:

    0.5uH Max @100KHz/0.2V

    Cw/w

    35PF Max @100KHz/0.2V

    D.C.R:

    1.2 ohm Max

    Insertion Loss:

    1-100MHz: -1.0dB Max

    Cross Talk :

    1-100MHz: -30dB Min



    Return Loss:

    1-30MHz

    40MHz

    50MHz

    60-80MHZ

    80-100MHZ

    -18dB Min

    -14.4dB Min

    -13.1dB Min

    -12dB Min

    -10dB Min
