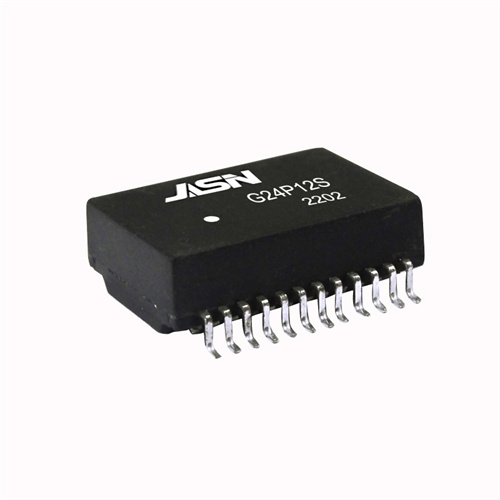

G24P12S

Feature


●Compliant with IEEE 802.3ab standard.
●Comply with RoHS requirements.
●Operating temperature range: 0℃ to +70℃.
●Storage temperature range: -25℃ to +105℃.

    Feature


    ●Compliant with IEEE 802.3ab standard.
    ●Comply with RoHS requirements.
    ●Operating temperature range: 0℃ to +70℃.
    ●Storage temperature range: -25℃ to +105℃.


    Electrical Specifications @ 25℃

    OCL:

    350uH Min. @100KHz/0.1V

    Hi-POT :

    1500Vrms

    Turn Ratio:

    1:1±3%

    LK:

    0.5uH Max @100KHz/0.2V

    Cw/w

    28PF Max @100KHz/0.2V

    D.C.R:

    1.2 ohm Max

    Insertion Loss:

    1-100MHz: -1.1dB Max



    Cross Talk :

    30MHz: -35dB Min

    60-100MHz: -32dB Min



    Return Loss:

    1-30MHz

    40MHz

    50MHZ

    60-100MHZ

    -18dB Min

    -14.4dB Min

    -13.1dB Min

    -12dB Min



    DCMR:

    30MHz

    60MHz

    100MHz

    -40dB Min

    -35dB Min

    -30dB Min
