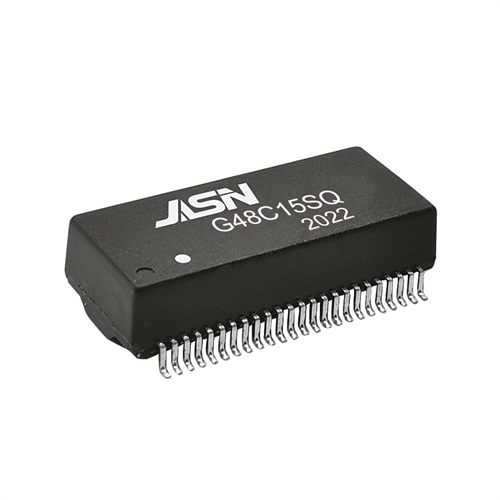

G48C15SQ

Feature


●Compliant with IEEE 802.3ab&802.3bt standard.
●Suitable for End-span PoE applications with 720mA current capability.
●Comply with RoHS requirements.
●Operating temperature range: -40℃ to +85℃.
●Storage temperature range: -40℃ to +125℃

    Feature


    ●Compliant with IEEE 802.3ab&802.3bt standard.
    ●Suitable for End-span PoE applications with 720mA current capability.
    ●Comply with RoHS requirements.
    ●Operating temperature range: -40℃ to +85℃.
    ●Storage temperature range: -40℃ to +125℃

    Electrical Specifications @ 25℃



    OCL:

    350uH Min. @100KHz/0.1V with 8mA DC Bias

    280uH Min. @100KHz/0.1V with 21mA DC Bias

    Hi-POT :

    6000V Surge 10/700us

    Turn Ratio:

    1:1±3%

    LK:

    0.5uH Max @100KHz/0.2V

    Cw/w

    35pF Max @100KHz/0.2V

    D.C.R:

    1.2 ohm Max

    Insertion Loss:

    1-100MHz: -1.0dB Max



    Cross Talk :

    30MHz

    60MHz

    100MHz

    -40dB Min

    -35dB Min

    -30dB Min



    Return Loss:

    1-30MHz

    40MHz

    50MHz

    60-80MHZ

    80-100MHZ

    -18dB Min

    -14.4dB Min

    -13.1dB Min

    -12dB Min

    -10dB Min
