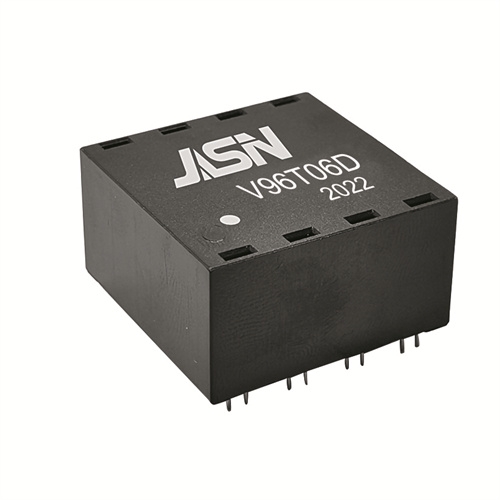

V96T06D

Feature


●Comply with ROHS requirements.
●Comply with IEEE802.3bz
●Operating temperature range: 0℃to+70℃.
●Storage temperature range: -25℃ to +125℃.

    Feature


    ●Comply with ROHS requirements.
    ●Comply with IEEE802.3bz
    ●Operating temperature range: 0℃to+70℃.
    ●Storage temperature range: -25℃ to +125℃.

    Electrical Specifications @ 25℃

    OCL:

    150uH Min. @100KHz/0.1V

    Hi-Pot:

    1500Vrms

    Turn Ratio:

    1:1±2%

    LK:

    0.5uH    Max @100KHz/0.2V

    Cw/w

    35pF Max @100KHz/0.2V

    D.C.R:

    1.0 ohm Max



    Insertion Loss:

    1-100MHz

    100-200MHz

    -1.0dB Max

    -2dB Max



    Return Loss:

    1-40MHz

    40-250MHz

    -16dB Min

    -16+10log(f/40)Min



    Cross Talk :

    1-200MHZ::-25dB Min

    CMRR:

    1-200MHZ:-20dB Min
