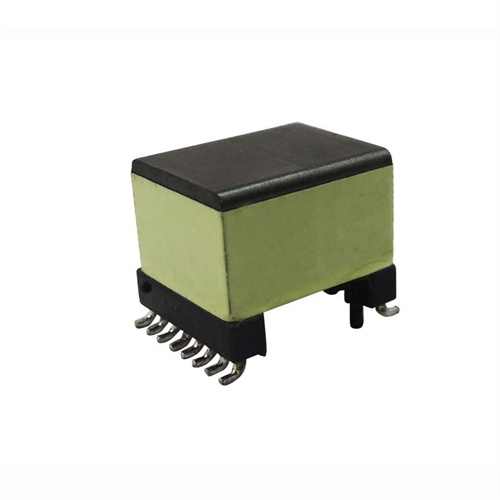

Feature
● with RoHS requirements.
●Operating temperature range:-40℃ to +125℃.
●Storage temperature range: -40℃ to +125℃.
Electrical Specifications @ 25℃
|
OCL: |
Pin(5-3) = 37uH±10%. @100KHz/0.1V. |
|
Turn Ratio: |
Pin(5-3) PIN(2-1) PIN(6.7-9.10) =2:1.1:1±3%. @20KHz/1.0V |
|
LK: |
Pin(5-3) with short(1,2,6,7,9,10) =0.75uH Max @100KHz/0.1V. |
|
D.C.R: |
Pin(5-3) =89mΩ Max. |
|
Pin(2-1) =155mΩ Max. |
|
|
Pin(6,7-9,10) =28mΩ Max. |
|
|
Hi-POT : |
PRI--SEC: 1500VAC/1mA/ 3S. |
