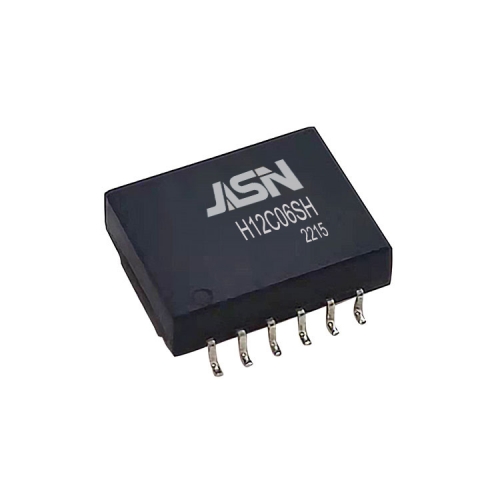

Feature
●Comply with RoHS requirements.
●Operating temperature range: -40℃ to +125℃.
●Storage temperature range: -40℃ to +125℃. Clearance
●distance: >20mm.
●Crepage distance: >22mm.
Electrical Specifications @ 25℃
|
OCL: |
300uH Min. @100KHz/0.1V @-40℃TO +125℃ |
|
Hi-POT : |
6220VDC/1mA/60Sec |
|
Turn Ratio: |
1CT:1CT±2% |
|
LK: |
0.5uH Max @100KHz/0.1V |
|
D.C.R: |
(1-3,4-5) 0.7 ohm Max |
|
(7-9,10-12) 0.85 ohm Max |
|
|
Insertion Loss: |
4MHz: -0.25dB Max |
|
Return Loss: |
4MHz: -20dB Min |
|
Cross Talk : |
4MHz: -50dB Min |
|
CMR: |
1-10MHz: -30dB typ |
|
10-400MHz: -20dB typ |
|
|
Insulation Resistance: |
400MΩ/250Vds Min |
