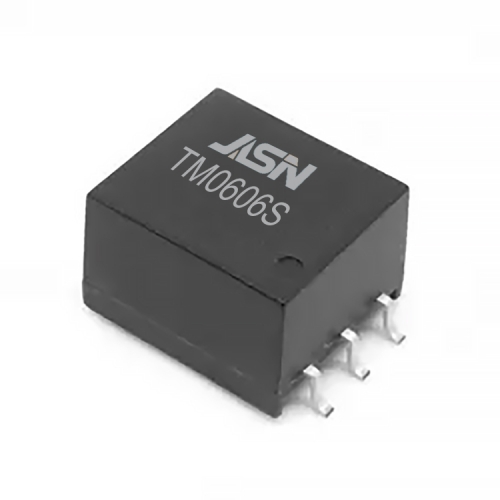

Feature
●Comply with RoHS requirements
●Compliance to J-STD
●1.J-STD-002:Solderability at 245℃ reflow profile
●2.J-STD-020:Level 1，No moisture sensitive
●3.J-STD-075:R7, 245℃ Maximun through reflow solder
●Coplanarity:0.1[.004]Max
●Isolation Category：Basic
●Working Voltage：1000VDC
●Creepage Distance：10 mm Min
●Clearance Distance：7 mm Min
●Operating temperature range:-40℃ to +125℃.
●Storage Temperature range: -50℃ to +125℃.
Electrical Specifications @ 25℃
|
PAPAMETER |
SPECIFICATIONS |
||
|
POLARITY |

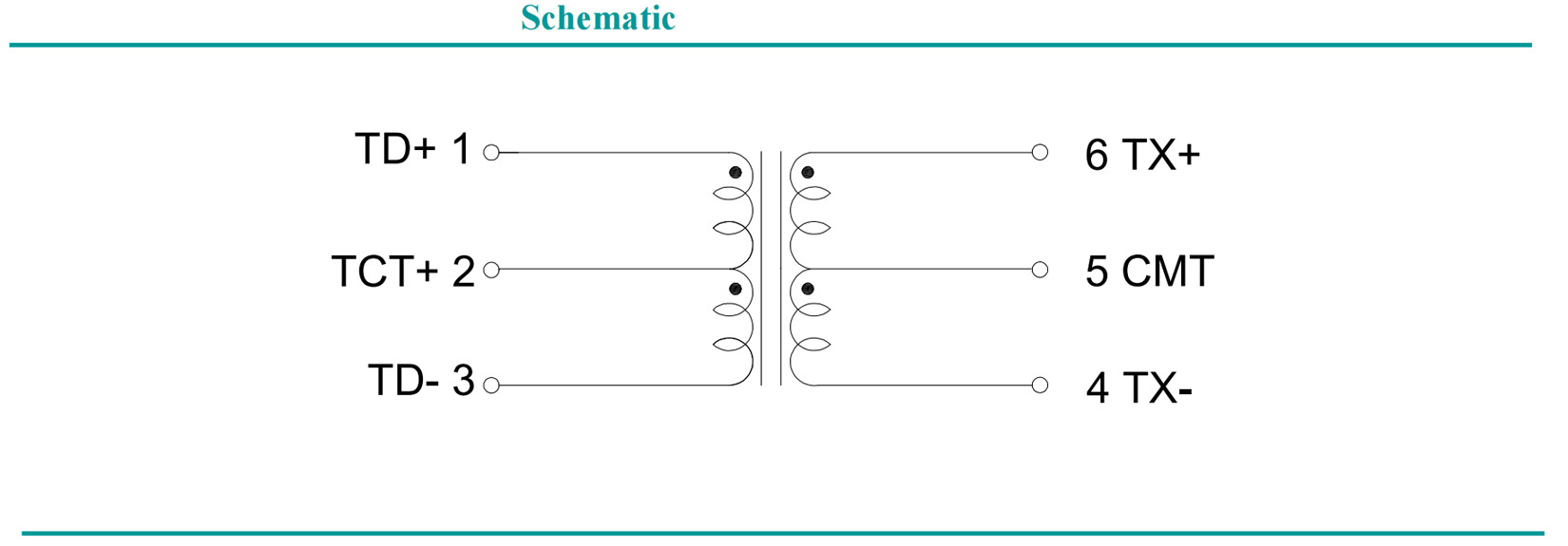

PER SCHEMATIC |
||
|
INPUT-OUTPUT ISOLATION |
4300VDC FOR 60 SECONDS |
||
|
INDUCTANCE (OCL) 100KHZ 100 mV -40C to +125C |
150 uH min,370uH Max |
||
|
INSERTION LOSS |
1-60MHZ |
80MHZ |
125MHZ |
|
- 1.0dB MAX |
- 1.25dB TYP |
-3.0dB MAX |
|
|
RETURN LOSS ZOUT=100 OHMS |
4MHZ |
30-80MHZ |
|
|
- 16dB MIN |
- 14+20LOG10(F/30MHZ) dB MIN |
||
|
TURNS RATIO 6-4:1-3 |
1:1 ±2% |
||
