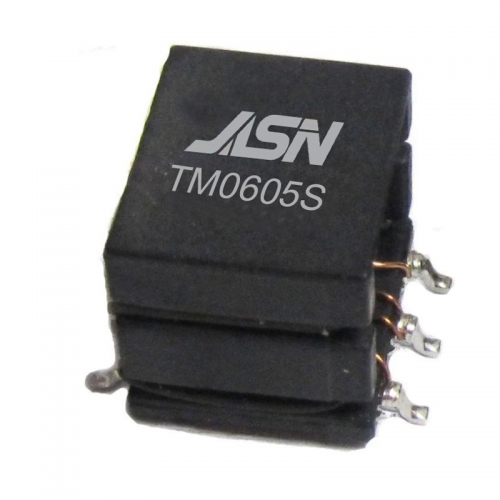

Feature
●Current Rating:1A
●Voltage-Time:23uS
●Switching Frequency：150KHZ min
●11 mm min creepage and clearance distance between PRI&SEC
●Coplanarity:0.1[.004]Max
●Designed to comply with the following requirements as defined by IEC60601-1(ed)：
●Amendment 1：Providing two means of patient Protection up to a working voltage of 360Vac
●Complies with the following requirements as defined by
●IEC60950-1,EN60950-1,UL60950-1/CSA60950-1 and AS/NZS60950-1
●-Reinforced insulation for a primary circuit at a working voltage of 550Vac
Overvoltage category II,Pollution Degree 2，up to 2km above sea level
Designed to comply with the following requirements as defined by IEC60664-1:
●-Reinforced insulation for a primary circuit at a working voltage of 400Vac
up to 2km above sea level.
Designed to comply with the following requirements as defined by IEC61010-1:
●-Reinforced insulation for a line to neutral voltage up to 1000vrms，overvoltage Category II,up
to 2km above sea level
●- Reinforced insulation for a line to neutral voltage up to 600vrms，overvoltage Category II,up
to 5km above sea level
Complies with the following requirements as defined by IEC62368-1,UL/CSA62368-1 and
EN62368-1
●- Reinforced insulation for ES3,operating frequency above 30KHZ,working voltage up to
550Vrms，1600Vpeak，overvoltage category II,Pollution Degree II,and up to 2km above sea
level
Comply with RoHS requirements.
Operating temperature range:-40℃ to +125℃.
Qualified to AEC-Q200

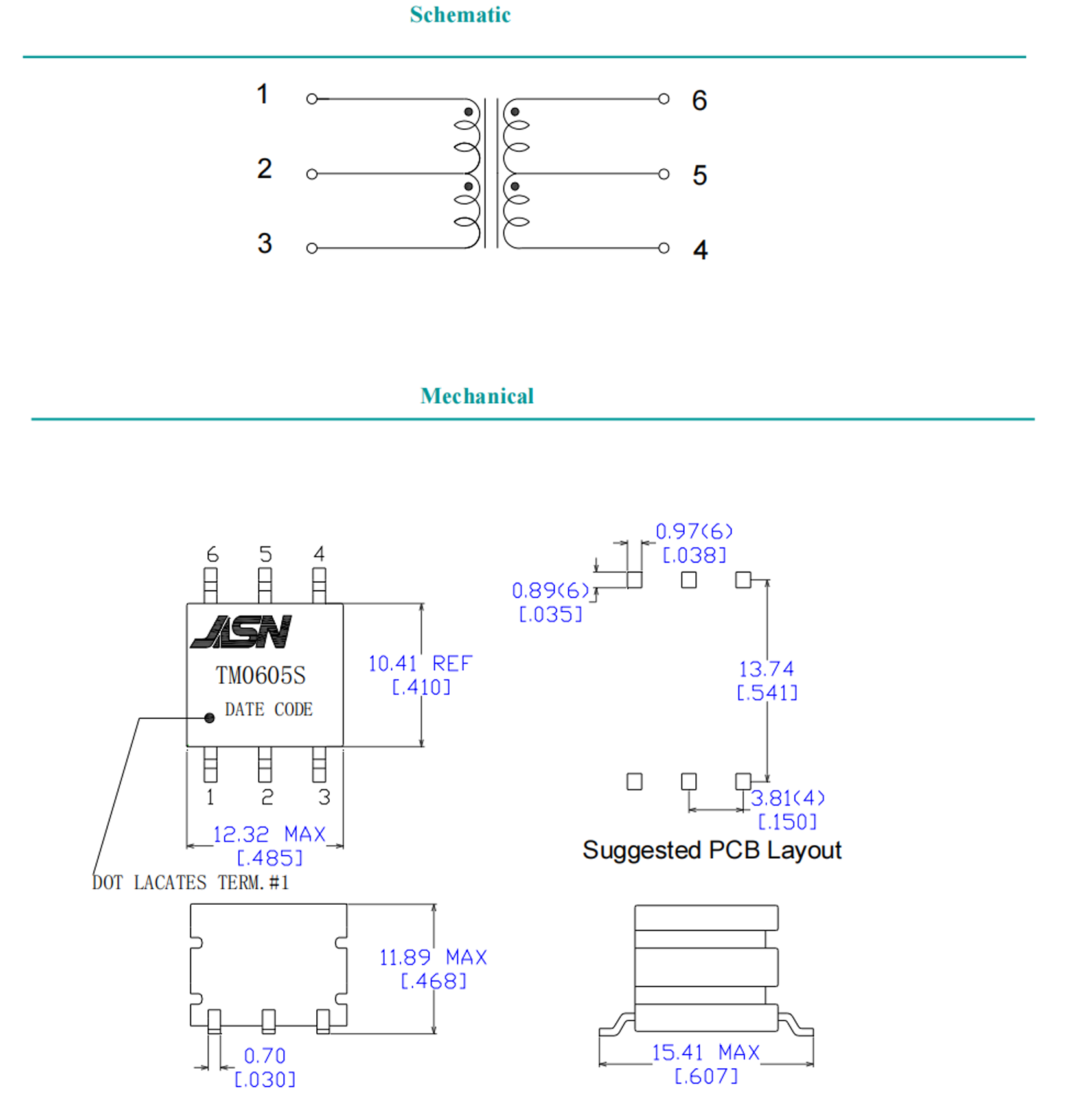

Electrical Specifications @ 25℃
|
PAPAMETER |
TEST CONDITIONS |
VALUE |
|
D.C.RESISTANCE 1-3 |
@20C |
0. 15ohms max |
|
D.C.RESISTANCE 6-4 |
@20C |
0. 15ohms max |
|
INDUCTANCE 1-2 |
100KHZ 10 mVac. LS |
110 uH min |
|
INDUCTANCE 2-3 |
100KHZ 10 mVac. LS |
110 uH min |
|
CAPACITANCE 1-6 |
100KHZ 10 mVac. CS |
18pF max |
|
DIELECTRIC 1-6 |
6250Vrms 2 seconds |
5000Vrms ，1 minute |
|
TURNS RATIO |
6-4:1-3 |
1:1 ±2% |
